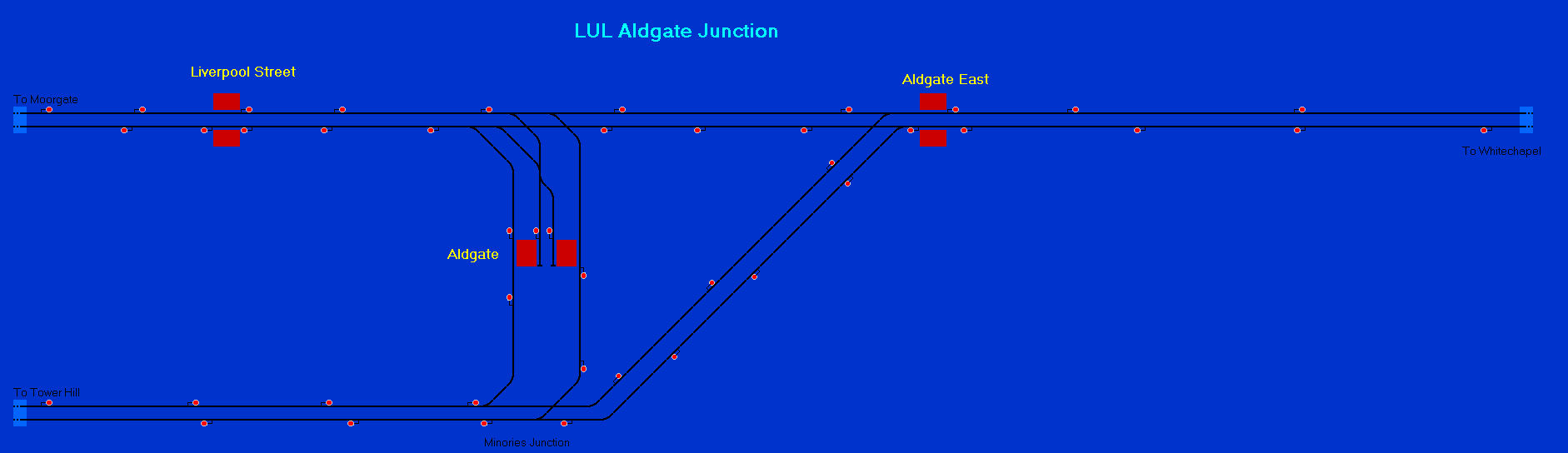

This is the first released version of my attempt to re-create the complex triangular junction at Aldgate on the London Underground Network. Complex for two main reasons – the high-intensity of the service pattern and the fact that all crossovers are on level grade.
The service pattern is as follows:
* Hammersmith & City Line from Moorgate to Whitechapel: 8 minute frequency in both directions
* District Line from Tower Hill to Whitechapel: 4 minute frequency in both directions
* Circle Line from Moorgate to Tower Hill via the outside platforms at Aldgate Station: 8 minutes in each direction
* Metropolitan Line from Moorgate to Aldgate (either of the two centre reversing platforms) and back to Moorgate: 4 minute frequency.
The timetable is a vastly simplified version of the real-life WTT, with each route being repeated 20 times (which can be changed easily in the timetable editor if you are feeling masochistic!).
You can find the project on the dedicated project page.
